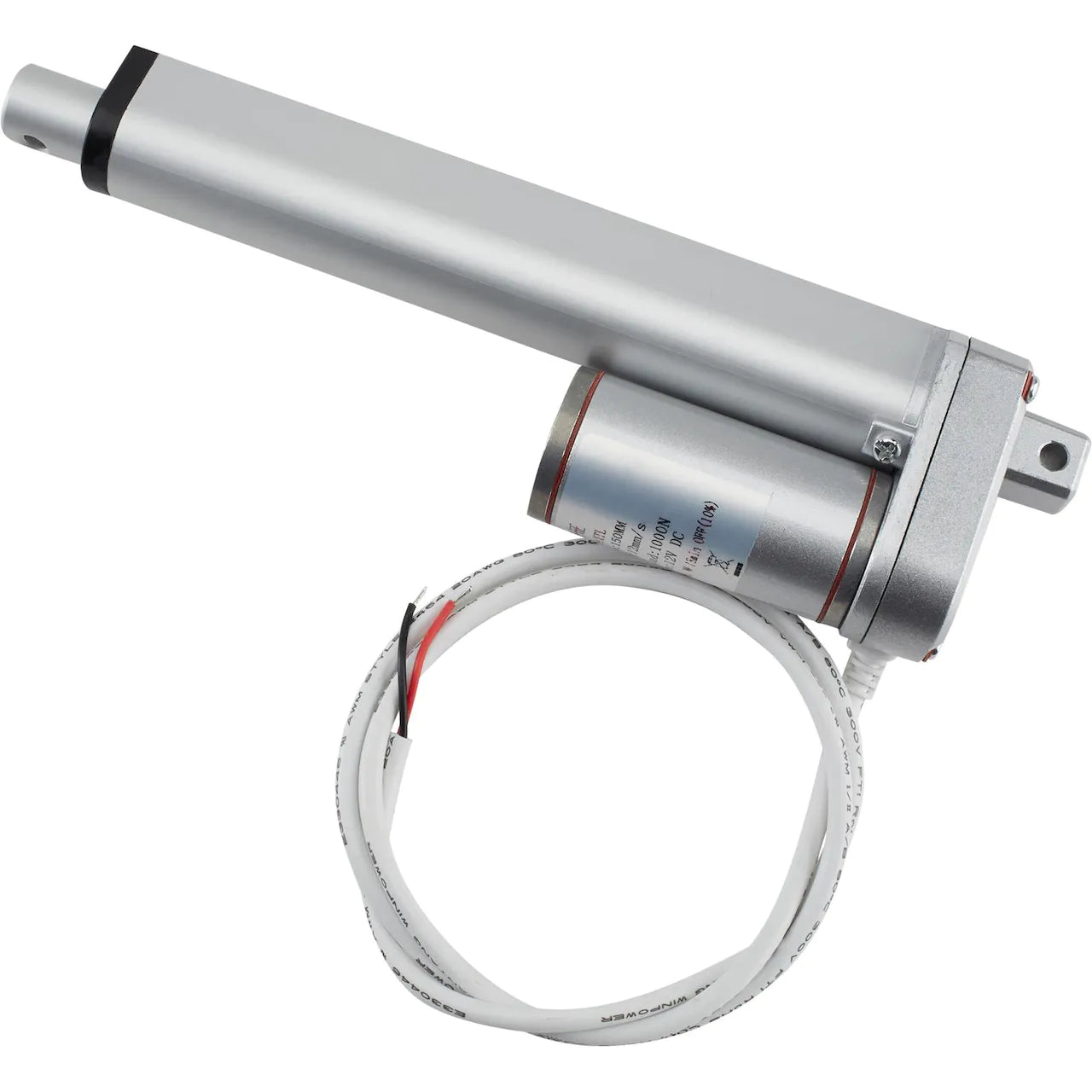

Stallard Linear Actuator - 6"

Stallard Linear Actuator - 6"
Part #: STA-91064290-6

Linear actuators are gear-driven drive motors that extend a shaft with 110 lbs. of force. Our 12V actuators are a universal design for custom installation and operation in countless applications. With built-in limit switches, ACME dive system, and a IP 63 dust and water resistant rating, they are ideal for automotive applications (trunk, hood, doors, etc.) as well as electric wing sliders for Mini Sprints.

• Load Capacity - 110 pounds
• Static Load - 550 pounds
• Speed at Max Load - 0.50 in/sec
• Reccomended Fuse - 10 Amp
• IP Grade - IP 63-total dust protection, water resistant
• Pin Holes: 1/4"
• Retracted Length: 246 mm (9.69")
• Shaft Diameter: 20.1 mm (.792")
• Size: 10-1/4" x 1-1/2" x 3"
• Weighs approx. 2-3 lbs
