Longacre Precision Fit Splined Hub Steering wheel Quick Disconnect
Longacre Steering wheel quick release hub
Part #: LON-52-56605
Any play in the steering - including the hub - takes away control by the driver letting the car 'wander around'. This precision hub has a micro-finished spud and Hard Anodized splined hub for a super tight fit, yet is easy to remove and install.
Plus, there are multiple sets of mounting holes so you can 'clock' your wheel 3 times closer.
For safety there are 2 sets of retaining grooves. If you don't get the ring engaged it will catch on the second safety groove rather than come off on the track.
The steel 'spuds' can be installed on both 3/4" and also 5/8" shafts.
• Spline hub - pull ring release with double safety grooves
• Welds to 3/4" or 5/8" steering shaft
• Aluminum hub
• 3 Mounting holes – 5/16" on a 1-3/4" bolt circle (hole distance 1-1/2" center-to-center)
• Weight: .85 lbs(385grams) including bolts
• WILL NOT FIT 290mm and 320mm flat suede wheels - PNs 56911 & 56913
• Sold as kit
Â
Specifications | ||
 | ||
Hub | ||
 | Style: | Splined |
 | Material: | Aluminum |
 | Release Type: | Pull ring |
 | Number of Mounting Holes: | 3 |
 | Mounting Holes Size: | 5/16" |
 | Bolt Circle Diameter: | 1-3/4" |
 | Mounting Holes Distance: | 1-1/2" center to center |
 | Bolt Size: | 5/16"-18 x .75" |
Shaft | ||
 | Style: | Splined |
 | Material: | Steel |
 | Safety Grooves: | 2 |

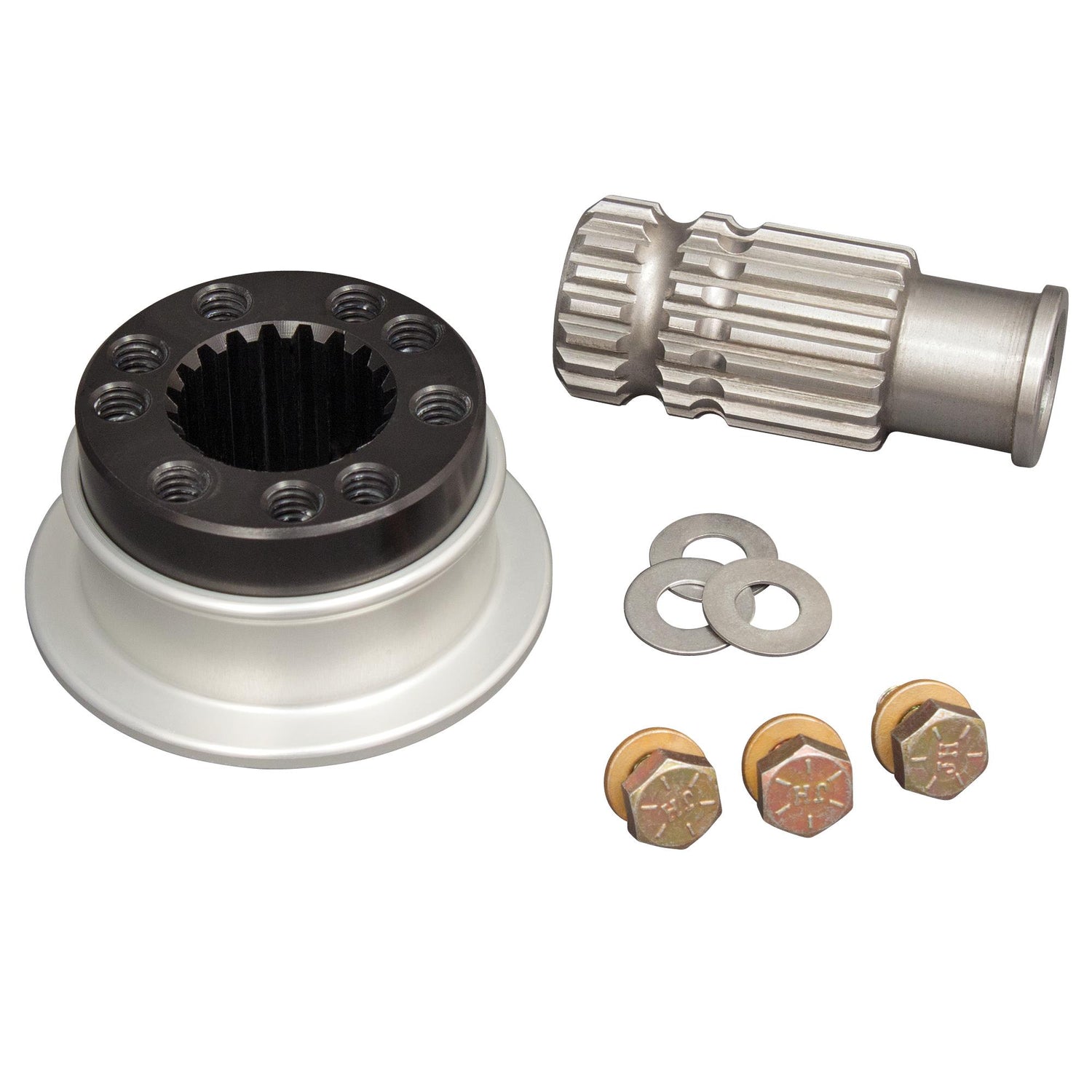

*image for illustration purposes only.
